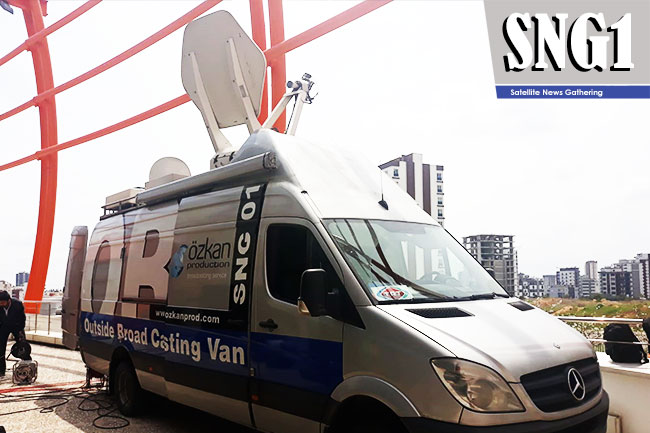

HD SNG Aracı | SNG-1

VEHICLE
  • Mercedes Sprinter 515 CDI
  • TX/RX ANTENNA
  • 1,2m Motorize VERTEX Anten
  • Neta Motosat RX Antenna (65cm)
  • HPA
  • 400 WATT MCL MT3400 Outdoor
  • Remote Control, Block Upconverter (L band input)(EXT–KU BAND 13.750-14.500) 1+1 Redundant System
  • KU Band up to 400W
  • MODULATOR/UPCONVERTER: NEWTEC NTC2280
  • DVB-S,DVB-S2 QPSK and 8PSK – L-Band out
  • ENCODER
  • Tandberg EN8090 MPEG-4 AVC SD/HD DSNG
  • MPEG-2 SD 4:2:0 4:2:2, MPEG-4 AVC SD & HD 4:2:0
  • HD-SDI, SDI, and composite PAL/NTSC video input BISS&RAS
  • 2 Stereo Audio Encoding,
  • Digital, Analog and Serial Digital embedded Audio
  • RECEIVER
  • Neta SD IRD (DVB-S)

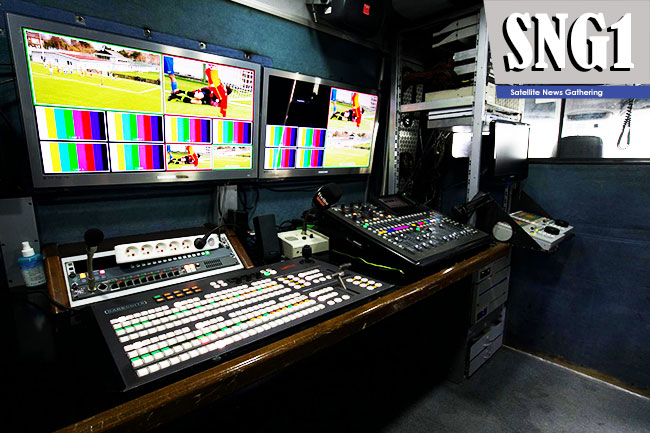

  • VIDEO
  • Video Switcher Ross Cabonite 24 Ch input
  • Camera Sony HXC-100
  • 6 Adet
    AUDIO
  • ALLEN HEATH GL-2400 – 16 channel
  • 4 Audio groups
  • 6 Auxiliary sends with per-channel pre/post fader switching
  • GENERATOR
  • 14 kVA Panda Generator
  • UPS
  • 2x 6kVA UPS MASTERGUARD UPS Isolation Transformator
  • AIR CONDITION
  • 3 pieces (1 rack type ve 2 on the roof)
